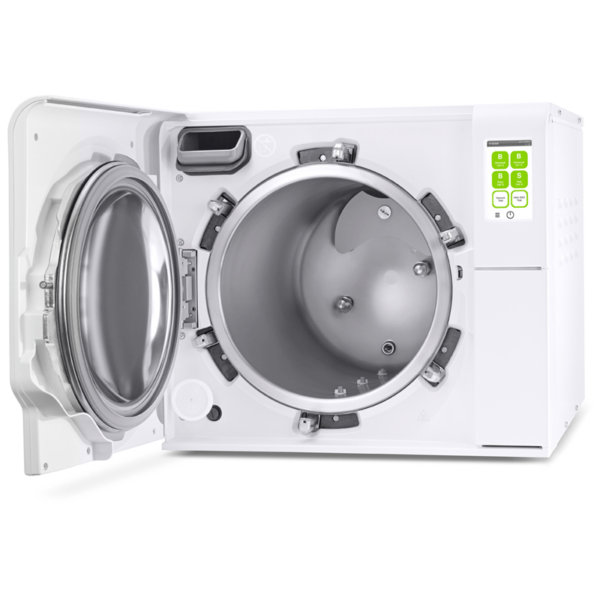

W&H Lara XL Autoclave

W&H Lara XL Autoclave

W&H Lara XL Autoclave – New Extra Large Autoclave with a 28 litre chamber.

B Type Dental Steriliser

with it’s 28 litre chamber, the Lara XL is able to reprocess up to 7kg of wrapped instruments

Upgrade to Fast Cycle (20 Mins) with activation code.

Price includes delivery, installation, validation and operator training

£6,594.00 inc. VAT
£5,495.00 ex. VAT



SKU: 19933110 Categories: ,

Description

W&H Lara XL Autoclave

W&H Lara XL Autoclave – New Extra Large Autoclave with a 28 litre chamber.

B Type Dental Steriliser

with it’s 28 litre chamber, the Lara XL is able to reprocess up to 7kg of wrapped instruments

  • Eco Dry + technology
  • High capacity
  • Unique connectivity and upgradeability
  • Advanced traceability options
  • Easy to navigate

The advanced patented Eco Dry + technology adjusts the drying time to the mass of the load. This reduces the cycle time, increases the life span of your instruments and optimises the energy consumption.

With its 28 litre chamber, Lara XL is able to reprocess up to 7 kg of wrapped instruments or 9 kg containers. Thanks to its 6-tray rack, it is extremely flexible.

Sterilization in 28 minutes. Thanks to Eco Dry + technology, Lara XL can sterilize instruments in just 28 minutes. After the sterilization cycle, the instruments can be used immediately or stored.

The colour screen display allows you to navigate through the intelligent menu structure quickly and with ease.

Easy filling – An integrated high-capacity funnel prevents water splashes during the filling process. The tank cover can be easily removed without tools to clean the tank.

Smart Upgrades

Lara XL can be upgraded with two W&H Activation Codes: EliTrace and Fast Cycle.

  • Fast Cycle allows sterilisation of unwrapped instruments , including handpieces in just 20 minutes.

Lara XL offers enhanced traceability. The documentation is automatically saved via a USB stick. Wi-Fi and LAN connections offer the possibility to download cycle reports directly to any PC or smart device. With the optional EliTrace function, Lara XL offers full traceability down to the individual instrument or kit without additional software or computer.



Sterilization cycle B Universal 134 B Prion 134 B Universal 121 S Fast 134 (optional)
Temperature: 134°C 134°C 121°C 134°C
Holding time (minutes): 4′ 18′ 30” 20′ 30” 3′ 30”
Total cycle duration (minutes) including
complete drying:
Automatic from
Typical load
Automatic from
Typical load Automatic from Automatic from
28‘–63‘
41′
42‘ 30‘‘–
77‘ 30‘‘
55‘ 30‘‘ 42‘–82‘ 21‘–25‘
Load type:
All unwrapped, bagged, single/double wrapped items:
› Solid
› Hollow A (narrow lumen)
› Hollow B (simple hollow item)
› Porous
Unwrapped items:
› Solid
› Hollow B (simple
hollow item)
› Dental load
Max. load: Instruments: 7 kg/porous: 2,3 kg/containers: 9 kg Instruments: 2 kg
Test cycles: Helix/Bowie and Dick/Vacuum
Item supplied with rack, 6 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test
Trade name:
Type:
Lara XL
RIS-311
Chamber size: 28 l
Power supply: 200–240 V AC; 50/60 Hz; 10 A single phase
Power consumption: 2.0–2.4 kW
Overall dimension
(width × height × depth):
492 mm × 455 mm × 614 mm
Weight (empty): 54 kg
Main/used water tanks: 4.8 l/5.1 l
Working range: 7 to 15 cycles
Usable space in chamber
(width × height × depth)¹:
230 × 230 × 420 mm
Connection types: 5 USB ports, 1 Ethernet port, automatic water filling kit

LARA XL Instruction Manual
