Description

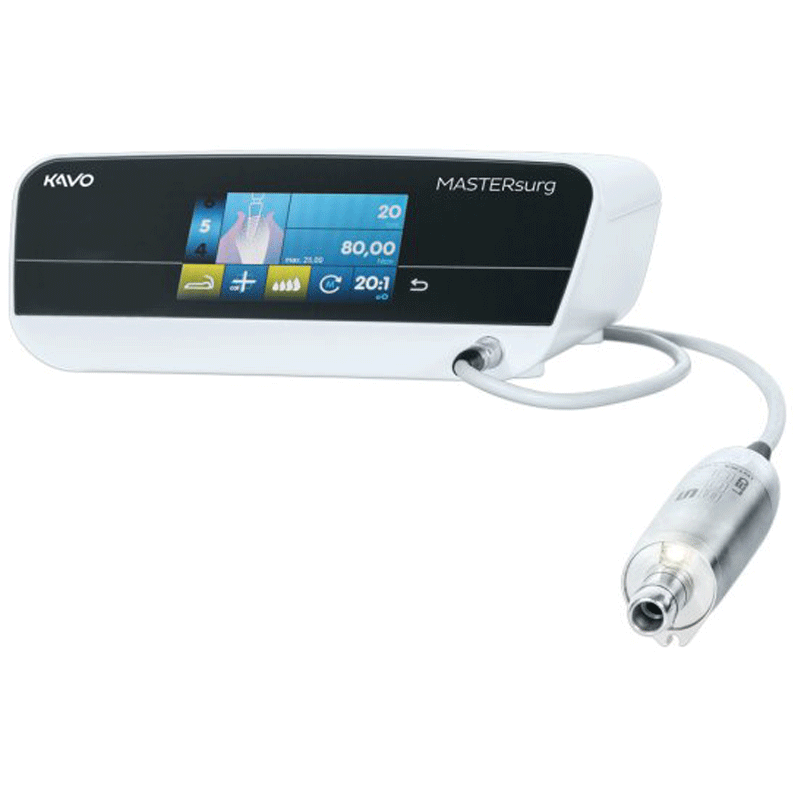

KaVo MASTERsurg LUX Wireless 1.009.1200
The KaVo MASTERsurg LUX Wireless helps you take dental surgery to a whole new level.
The philosophy behind it is to provide you with comfort features that make a big difference when delivering maximum performance on a daily basis.
- Modern Touch Display
- Easy Multiprogramming
- Wireless Foot Pedal
- Clear Data Recording
KaVo MASTERsurg LUX Wireless – surgical unit
- Comfort features such as touchscreen, wireless foot control and data documentation come as standard
- Customise with up to 10 programs, each with 10 individually programmable steps
- High performance thanks to the S600 LED – one of the world‘s lightest surgical motors
Modern Touch Display
- Simple, intuitive programming with exclusive glass panel touchscreen
- Optimal sight from all angles due to nonreflecting display
Easy Multiprogramming
- Customizable to individual requirements
- Settings for different bone density, implant systems and users
Wireless Foot Pedal
- Choose a convenient location in your workplace thanks to the wireless foot control
Clear Data Recording
- Real time torque display for quality control
- Storage on SD card, transfer to patient file possible
Customizable Parameters
- 10 programs, each with individually programmable treatment steps (max. 10)
- Change of contra-angle transmission ratio
- Maximum speed
- Maximum torque
- Pump delivery (0 – 4)
- Motor clockwise/anticlockwise
- Selection of implant position
Technical Specifications
- Maximum torque: 80 Ncm at the instrument
- Speed range: 0 – 40,000 rpm
- Power supply voltage: 100 V – 240 V
- Input frequency: 50 / 60 Hz
- Pump performance: 0 – 110 ml / min
Surgical unit MASTERsurg LUX Wireless – Redefining the Best.
KaVo MASTERsurg – Surgery system featuring high precision.​
| Article | Description | Mat. No. |
| MASTERsurg LUX Wireless surgical unit | All in one surgical unit including: Surgical motor INTRA LUX S600 LED, multifunctional wireless foot control, motor tubing for S600 LED, starter tube set (5 pieces), motor and instrument holder, bottle holder, integrated peristaltic pump and power supply | 1.009.1200 |
| INTRA LUX S600 LED | One of the lightest and smallest motors (28 % lighter and 20 % shorter compared to its predecessor), can be heat disinfected and autoclaved, speed range: 0 – 40,000 rpm, max torque 5.5 Ncm (0 -12,000 U / min)/5.5 to 1.5 Ncm between 12,000 – 40,000 rpm), brushless DC motor with KaVo Mini LED | 1.008.8000 |
| Hose set sterile S600 | Single use coolant hoses (10 pieces) | 1.009.8757 |
| Motor Cable S600 | Flexible motor cable, can be disinfected and autoclaved, cable length 2 m | 1.009.1700 |
| Handpiece tray | Storage tray for motor and instrument, can be disinfected and autoclaved | 1.009.3411 |
| SURGmatic S201 XL | Contra-angle with hexagon clamping system, 20:1 reduction ratio, with light | 1.010.2332 |
| SURGmatic S201 XC | Contra-angle with hexagon clamping system, 20:1 reduction ratio, without light | 1.010.2333 |
| SURGmatic S201 L | Contra-angle with 20:1 reduction ratio, with light | 1.009.0470 |
| SURGmatic S201 C | Contra-angle with 20:1 reduction ratio, without light | 1.009.1100 |
| SURGmatic S11 L | Handpiece with 1:1 transmission ratio, with light | 1.009.1010 |
| SURGmatic S11 C | Handpiece with 1:1 transmission ratio, without light | 1.009.1005 |
