NSK VarioSurg Tips – Bone Surgery

Description

NSK VarioSurg Tips – Bone Surgery

SG1 / H-SG1 : Dots mark 3, 6 and 9 mm from top of tip. Five teeth; 0.6 mm thick.
SG1A : Dots mark 3, 6, 9,12 and 15 mm from top of tip. Five teeth; 0.6 mm thick.
SG2R : Right curved tip. Three teeth; 0.6 mm thick.
SG2L : Left curved tip. Three teeth; 0.6 mm thick.
SG8 / H-SG8 : Dots mark 3, 6 and 9 mm from top of tip. Three teeth; 0.6 mm thick.
H-SG8R : Right curved tip. Three teeth; 0.6 mm thick.
H-SG8L : Left curved tip. Three teeth; 0.6 mm thick.
SG8A : Dots mark 3, 6, 9,12 and 15 mm from top of tip. Three teeth; 0.6 mm thick
SG14R : Right curved tip. Five teeth; 0.6 mm thick.
SG14L : Left curved tip. Five teeth; 0.6 mm thick.
SG19 : Dot mark 3 mm from top of tip. Five teeth; 0.8 mm thick.
SG30 : Sharp edge. 0.5 mm thick.
SG58 : Dots mark 3, 6 and 9 mm from top of tip. Three teeth; 0.6 mm thick.

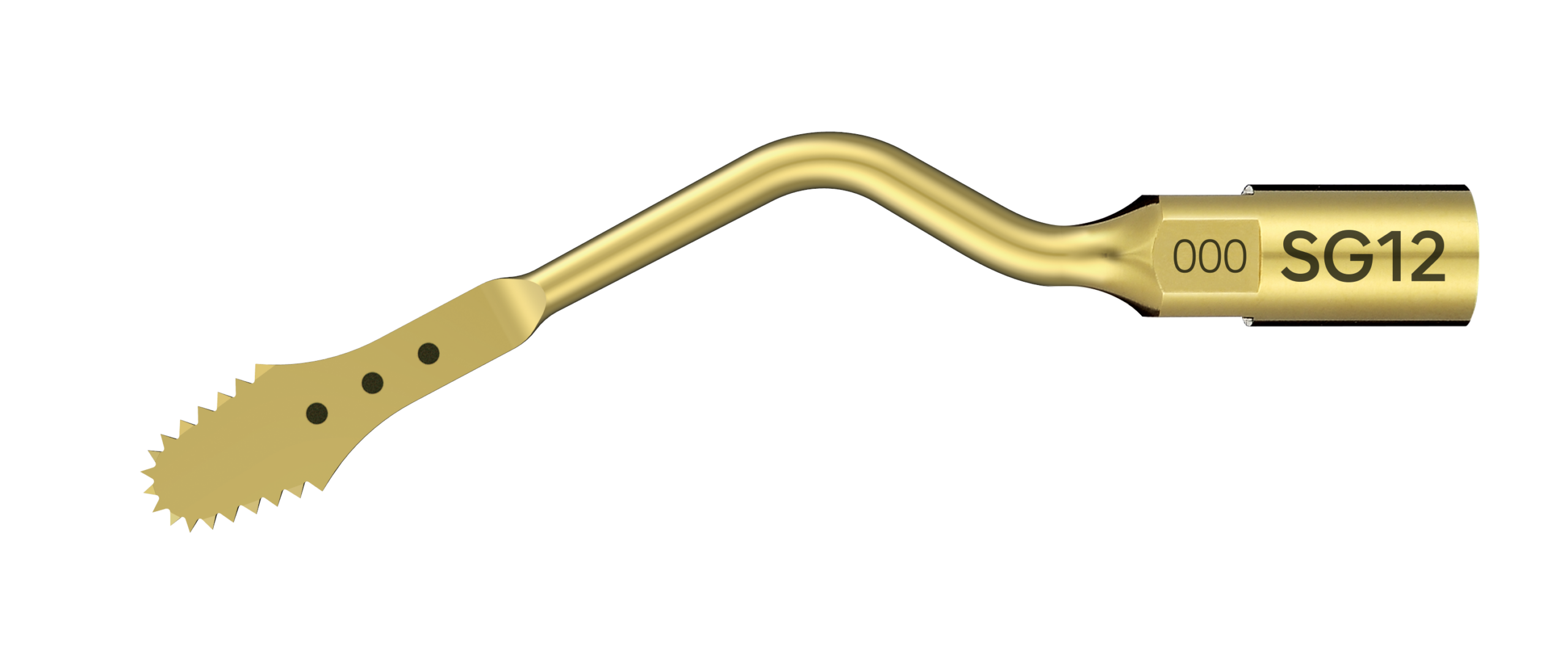

SG12 : Dots mark 6, 8 and 10 mm from top of tip. Eighteen teeth; 0.35mm thick (ultra slim).
